Folding Arm² PA-KL²-L-55/1200-S Synchro – Inc Cable + Plug

£661.00 / £793.20 incl. VAT

Folding arm² PA-KL²-L-55/1200-S
24 V DC / 3 A / 550 N / 1200 mm stroke
Synchro capable actuator

Folding arm window actuator for SHEV and controlled natural ventilation applications.
Flexible installation on main and secondary closing edges.
Suitable for frame and sash mounting on inward and outward opening sashes/flaps in roofs and facades.
With integrated, programmable SICO switch-off technology with microprocessor and SICO-PLUG connection plug.

Technical data:
Rated voltage: 24 V DC (- 15 % / + 25 %)
Ripple: max. 500 mV
Rated current: 3 A
Switch-on duration: 30% (ON: 3 min / OFF: 7 min)
Push force: 550 N
Pulling force: 550 N
Nominal locking force: 660 N
Stroke length: 1200 mm
Running speed: 23 mm/s
Protection class: IP54 (IP65 on request)
Temperature range: -5°C to +75°C
Housing: Aluminium profile housing EV1 anodised
Lever: two-arm, stainless steel
Connection: SICO-PLUG (without connection cable / set)
Cut-off: Integrated overload cut-off with microprocessor
Volt-free contact (freely adjustable)
Dimensions (LxWxH): 751 x 58 x 165 mm
Weight: 7.6 kg

Options:
- Connecting cable/set
- Mounting brackets (selection depending on profile type and mounting position)
- Coating according to RAL or DB
- Single operation

Manufacturer:
SIMON PROtec Systems GmbH
Type: Folding arm² PA-KL²-L-55/1200-S
Article number: M2 2005 S

SKU: M22005S-CAB Categories: , Tags: , Brand:

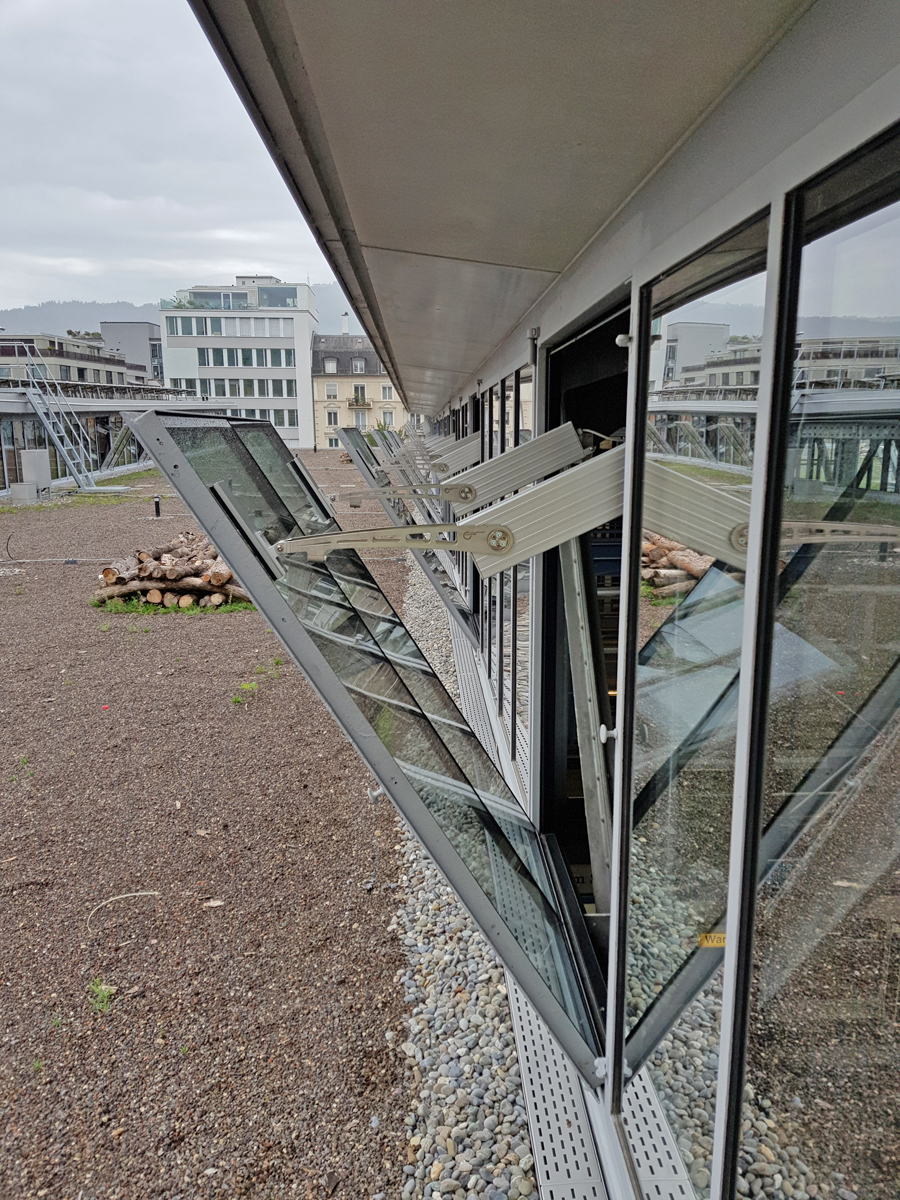

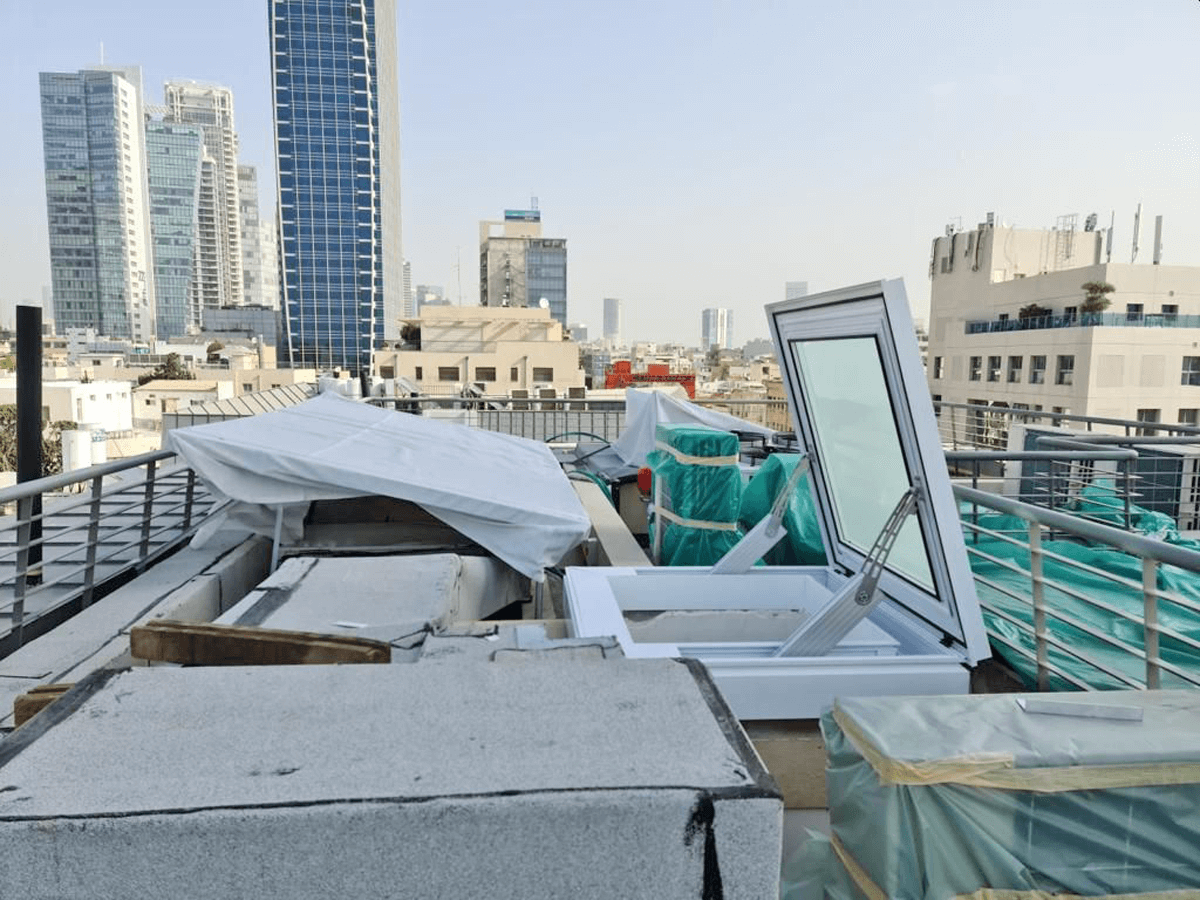

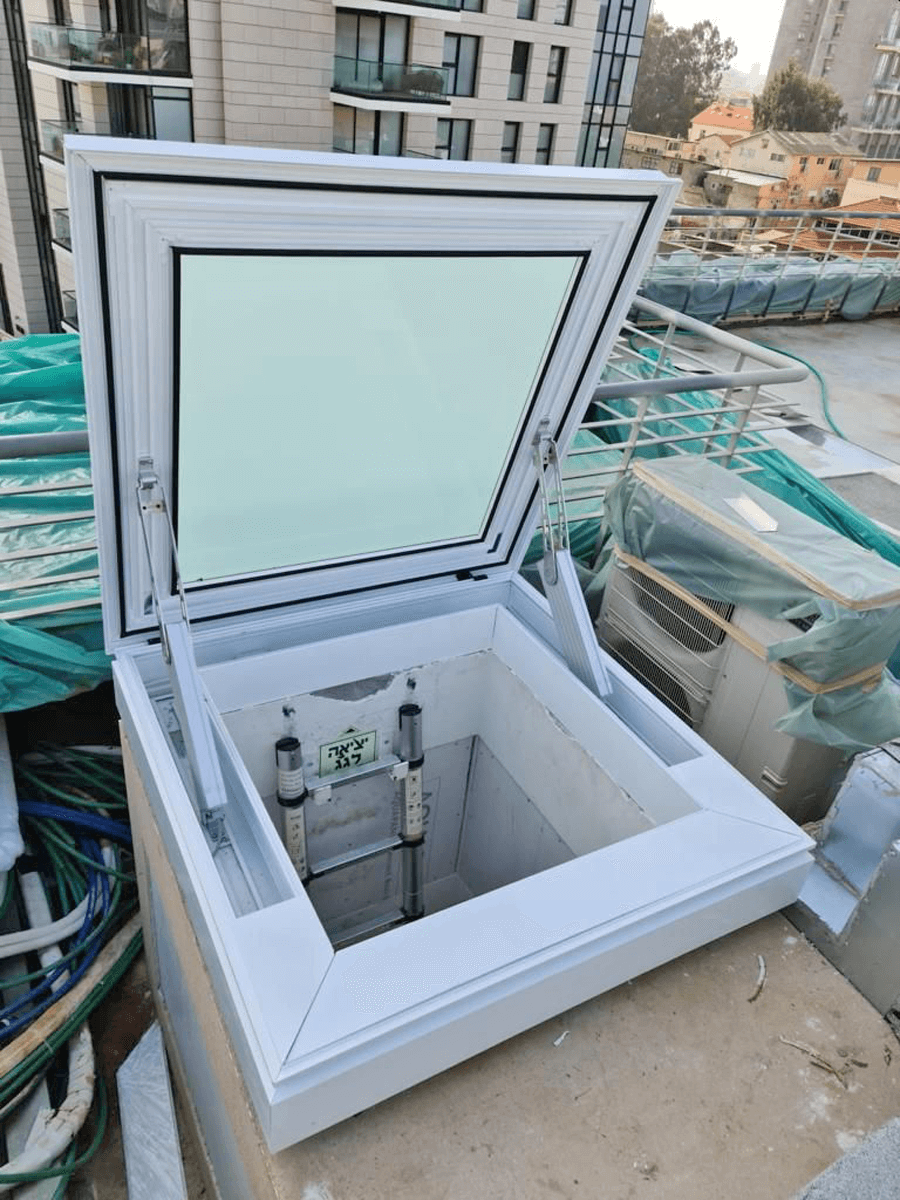

Folding arm² actuators- Premium RWA window opener

The folding arm is the premium actuator technology for electromotive window opening on facades and roofs. It is not only designed and tested for use in smoke and heat ventilation, but also for controlled natural ventilation. Actuators of the "folding arm" type have a special kinematics and their high-performance gear (> 20,000 LW) in combination with the stainless steel lever arms is very resistant to variable loads (wind, snow). Especially the symmetrical design and, when closed, the small installation dimensions make this automatic window opener ideal for projects with high aesthetic demands - especially for large and heavy windows. All folding arm actuators are tested and certified according to DIN EN 12101-2 together with various profile series for use as natural smoke and heat exhaust ventilation devices. The connection is made via the SICO-PLUG connection plug. This contains the SICO BUS programming interface by which parameters such as opening stroke and force can be parameterised and further status messages can be read out. Products of the PA-series are available in different versions as solo and synchro capable actuators. They can be networked with each other in synchronous groups as well as for remote control with SHEV control panels and the building management system. All folding arm² actuators are characterised by a very high efficiency for the low power consumption and thus reduce permanently running operating costs.

Performance features folding arm² actuator PA-KL²-55/1200-S:

The PA-KL²-55/1200-S folding arm² actuator is a synchronous actuator with integrated load cut-off and can be used for the automation of inward and outward opening windows on facades and roofs. Installation is possible on main and secondary closing edges. The folding arm² actuator PA-KL²-55/1200-S has an opening stroke of 1200 mm and, depending on the installation position, thus achieves a large cross-section for effective natural ventilation/smoke extraction. The folding arm² actuator PA-KL²-55/1200-S has a push and pull force of 550 N. Actuator parameters such as force and opening stroke can be adapted to local conditions on site using the SICO LINK software interface. The PA-KL²-55/1200-S folding arm² actuator is equipped with a restart lock, a soft start and a soft close to relieve the seals. The PA-KL²-55/1200-S folding arm² actuator can also be used together with locking actuators in sequential control systems; its potential-free feedback contact is freely programmable.

Scope of delivery: PA-KL² + SICO-PLUG (without connection cable, please order separately)

Under the Construction Products Regulations (CPR) it is a legal requirement to use only certified products for smoke ventilation. It is the responsibility of the installer to ensure installations meet the relevant standards. For more information see SCS Group’s Technical Bulletin.

Article nameFolding Arm² PA-KL²-L-55/1200-S
Input voltage24 V DC
Nominal current3 A
Stroke1200 mm
Push force550 N
Pull force550 N
Running speed23 mm/s
IP codeIP54
Switch on duration30 %
Weight7.6 kg
Housing length751 mm
Housing width58 mm
Housing height165 mm
Nominal working temperature20 °C
Environment temperature range-5 °C - 75 °C
Nominal locking force660 N
HousingAluminum
Appliance classIII
ColourAlu EV6/EV1
Cut-OffIntegrated overload cut-off with microprocessor
Features3 Years warrantySICOSynchroSHEVVENTInput 24 VDCN-SHEV approved
Housing typeAluminium
Input voltage range- 15 % / + 25 %
Ripple500 mV
