M-SHEV-MI-100 Relay Module

£183.00 / £219.60 incl. VAT

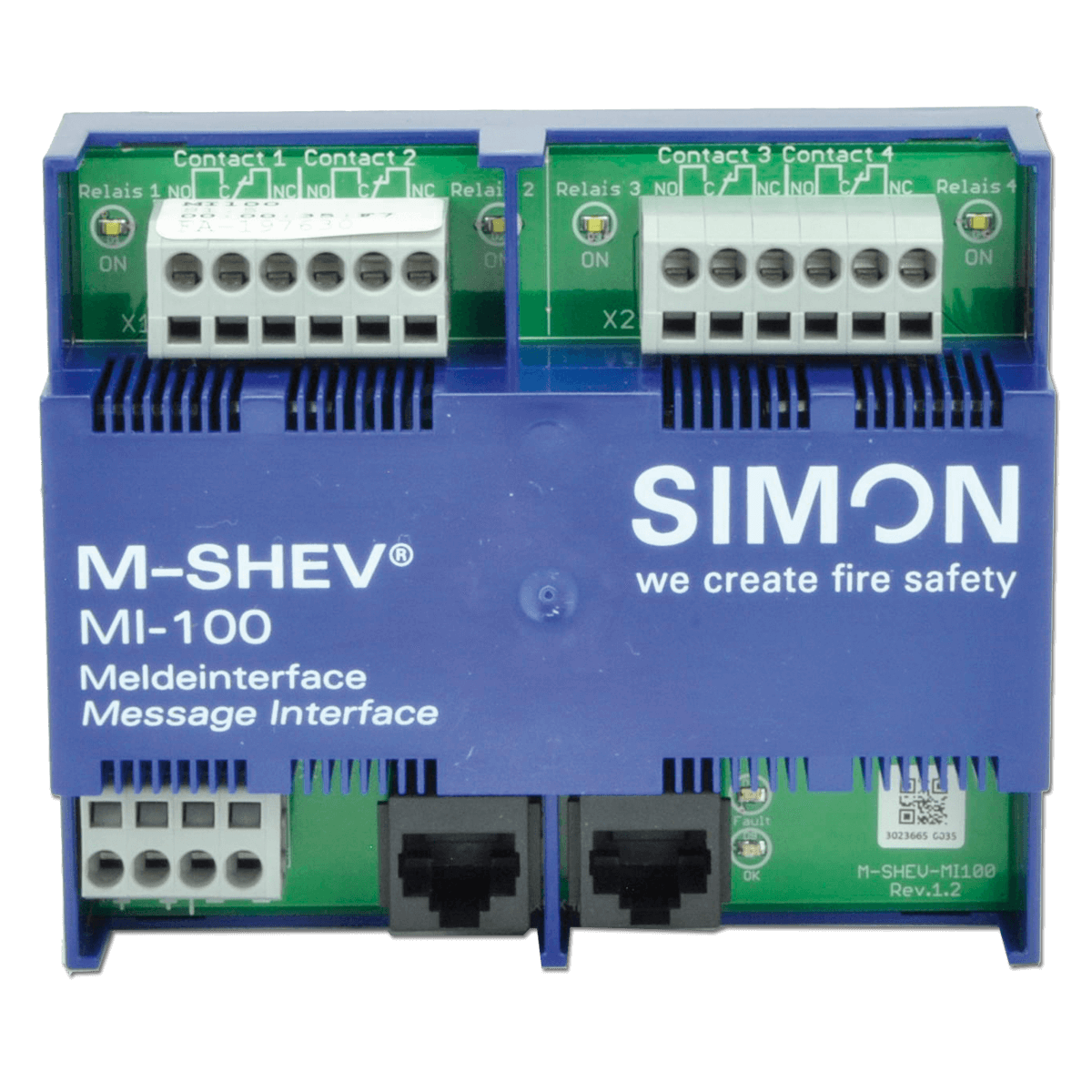

MI-100 Message interface

Provides four freely programmable, potential-free changeover contacts NO / NC. Switching capacity 30 V DC, switching current max. 6 A. Switching operations can be set via SimonLink software for defined states in direct form or via matrix switching. All states of the individual base modules and the charging circuit can be called up. MI-100 modules are independent of the number and assignment of SHEV and ventilation groups.

Manufacturer:
SIMON PROtec Systems GmbH
Type: MI-100 Message interface
Article number: ST4 3382

SKU: MI-100 Category: Tags: , , Brand:

The MI-100 message interface is one of the basic modules for the M-SHEV module center. The module is connected via a digital BUS. It is used to retrieve all necessary information from the peripherals.

Message interface - optional module of the M-SHEV module center

The message interface is an optional base module of the M-SHEV and can be installed on request. It is located next to the four other components central interface, motor relay, sensor interface and the power supply in a secure sheet steel housing.

Basic module for retrieving important information

All necessary information is queried via the message interface MI. These include messages such as "Wind Rain Detector active" or "SHE triggered". Thus, the message interface offers more security in dealing with the M-SHEV module control center and its peripheral devices.

Your benefits at a glance:

  • Receive important information about the M-SHEV and its peripherals
  • more security when dealing with the module center

Under the Construction Products Regulations (CPR) it is a legal requirement to use only certified products for smoke ventilation. It is the responsibility of the installer to ensure installations meet the relevant standards. For more information see SCS Group’s Technical Bulletin.

Article nameMessage interface MI-100
Input voltage24 V DC
Output voltage24 V DC
IP codeIP54
Weight0.248 kg
Environment temperature range-5 °C - 40 °C
ColourBlue
Features3 Years warrantySimon LInkSHEVVENT
LED signsLEDs on load cards: 1. green LED "AKKU" = OK(Akku exists and is loading)2. green LED "NETZ" = mains operationfurther LEDs on the modules
DATANORM LongtextSignaling interface, type MI-100, for module center M-SHEV, with four freely programmable potential-free change-over contacts. Parameterizable via SimonLink.
